電源線長	1.5m
額定電流	1.5
額定電壓	125
形狀	矩形
種類	插頭/插座
殼體材質	塑料
品牌	天睦

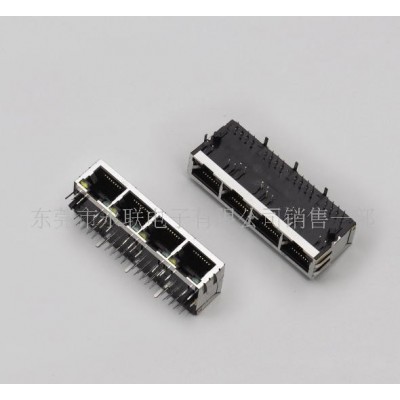

型號	5TF 6U 1X4 10/100base
加工定制	是
孔位數	8個

額定電流	1.5（A）	額定電壓	125（V）
環境溫度	-40~85（℃）	殼體材質	黃銅
導電體材質	CU	產品認證	UL

MATERIAL   1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON2. HOUSING COLOR : BLACK OR OTHERS3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mm&t=0.35mm4. PLATING: ConTACT AREA-SELECTING GOLD  TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL 5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED 6. LED: OPTION        SPECIFICATIONS   ELECTRICAL1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.2. C W/W(pF MAX):28 pF3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz 5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz 6. CROSS TALK: 35 dB MIN @ 1-80 MhzMECHANICAL1. MATING FORCE: 2.27 Kgf MAX2. DURABILITY: 750 CYCLES MIN 3. PCB RETENTION PRE-SOLDER:1LB MIN ENVIRONMENTAL1. STORAGE :-40℃~85℃MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F.   FEATUER 1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR 2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE 3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE 4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION 5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT 6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE 7. OPERATION TEMPERATURE RANGE:0℃~70℃
