技術數據-UL/CUL

等級 Use Group

B

C

D

額定電壓 Rate Voltage [V]

300

-

300

額定電流 Rated Current [A]

15

-

10

接線范圍 Wire Range [AWG]

/

耐電壓 Dielectric Voltage-Withstand

1.6KV

技術參數-IEC

過電壓類別 Overvoltage Category

III

III

II

污染等級 Contamination Class

3

2

2

額定電壓 Rated Voltage [V]

320

320

630

額定電流 Rated Current [A]

12

12

12

額定沖擊電壓 Impulse withstand voltage [KV]

4

4

4

導線截面積[硬/柔] Conductor cross section [mm2]

/

材料 Material

絕緣材料 Insulation Material

PA66

阻燃等級 Flame relardant rating

UL94V-0

導體材料 Conductor Material

Copper alloy

導體表面鍍層 Plating of conductor surface

Sn plated

一般參數 Other Data

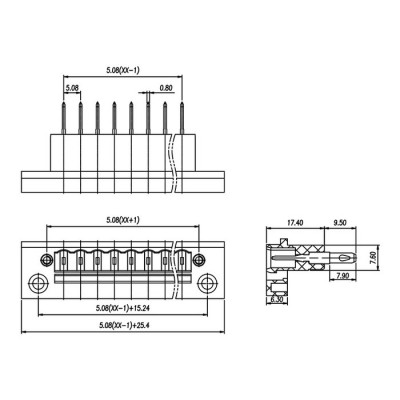

間距/極數 Pitch/Poles [mm]/[P]

 5.08/2-24

剝線長度 Stripping Length [mm]

/

螺絲/扭矩 Screw/Torque(Max)[N.m]

/

工作溫度 Operating temperature [℃]

-40~+105

焊錫溫度 Soldering temperature

250℃/5S

引針尺寸 Pin dimensions [mm]

/

PCB板孔徑 PCB Hole Diameter [mm]

/
